ANCHORGRATE

Standard Mesh Grating, Mini Mesh Grating, Micro Mesh Grating, Solid Top Grating, Heavy Duty Grating, Stair treads, Pultruded Grating, FRP Decking

Overview

At Anchor Products, we are committed to providing our customers with the highest quality AnchorGrate FRP flooring systems on the market.

Our products are designed to withstand harsh environments and meet all safety standards, making them the perfect choice for a variety of industries and applications.

We offer a wide range of FRP gratings, that are customizable to meet your specific needs.

Our gratings are easy to install, maintain and are environmentally friendly, as they are made from recycled materials and can be recycled at the end of its life.

Choose the AnchorGrate for all your FRP grating needs and experience the benefits of our high-quality products and dedicated customer service.

Manufacturing

Anchor Products’ pledge is to provide customers with the most exceptional FRP gratings obtainable in the market. Our squad of specialists employs top-quality materials and cutting-edge manufacturing techniques to guarantee that our gratings conform to all quality standards and specifications. They are robust, long-lasting, and capable of withstanding even the most severe environments.

We offer proficient aid with design, installation, and maintenance, making sure that our products satisfy your specific demands. Furthermore, we furnish a comprehensive traceability system, and our knowledgeable team is always accessible to address any inquiries you may have.

We offer proficient aid with design, installation, and maintenance, making sure that our products satisfy your pecific demands. Furthermore, we furnish a comprehensive traceability system, and our knowledgeable team is always accessible to address any inquiries you may have.

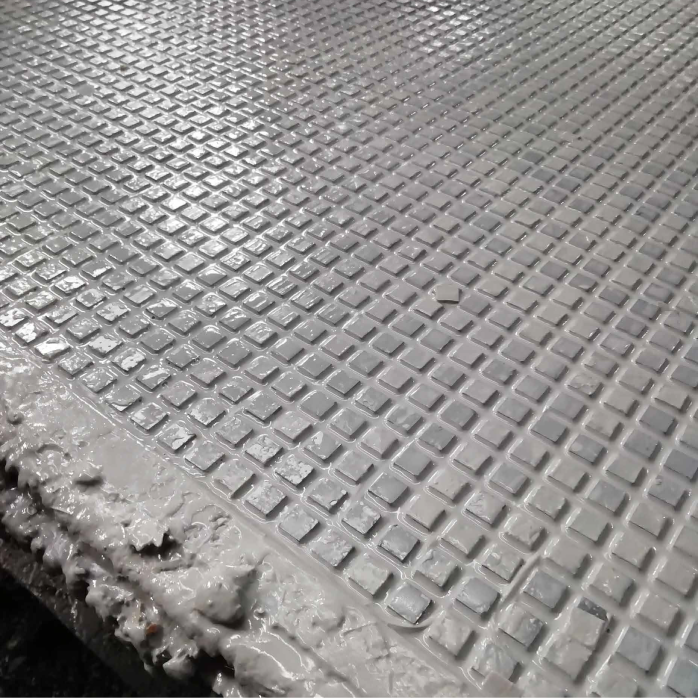

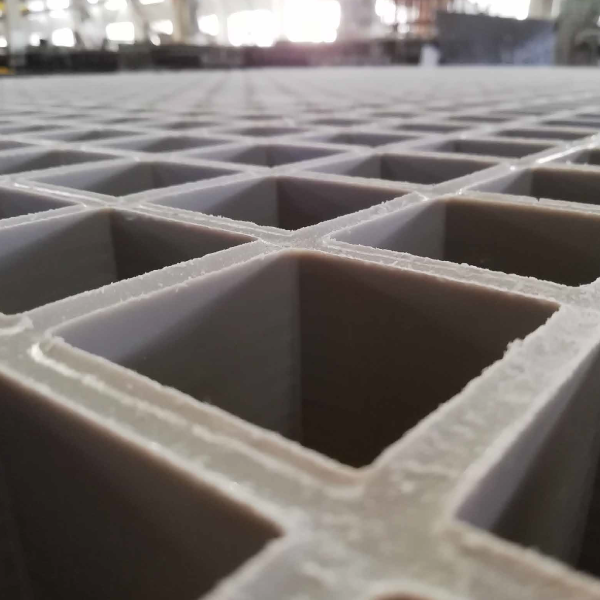

Molding

During this manufacturing process, continuous glass fibers are manually or automatically interlaced and thoroughly impregnated with resin to the desired dimensions. The process employs a mold or bed shaped as the necessary product, permitting sufficient time for the product to cure in its precise form.

This manufacturing process demands a great deal of labor and patience.

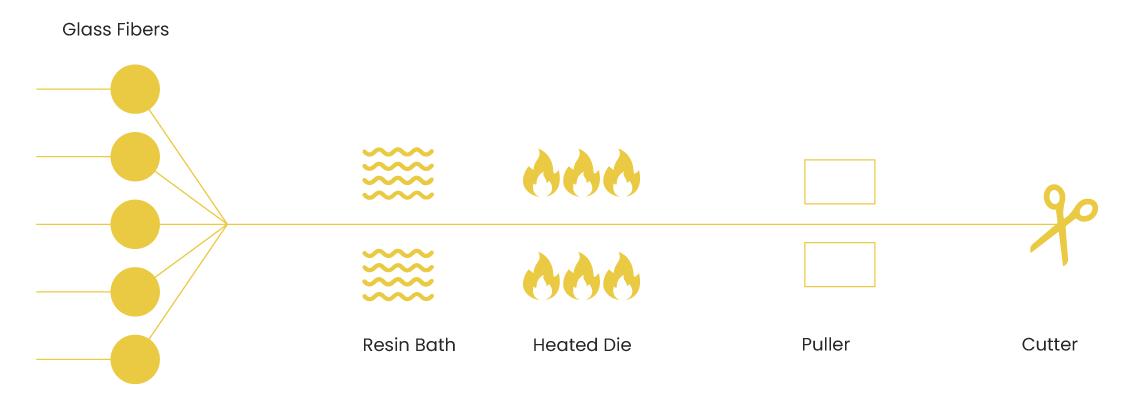

Pultrusion

Pultrusion is a technique utilized for manufacturing continuous fibre-reinforced polymer (FRP) profiles that boast exceptional strength and dimensional stability.

The process comprises drawing composite materials, such as fiberglass, through a die to fashion a preferred shape. The materials are impregnated with resin and then pulled through a heated die where the resin solidifies and cures into the final form.

The continuous fiber reinforcement affords excellent strength, whereas the resin matrix provides stability and safeguards the fibers from impairment. Pultrusion yields an extensive variety of FRP profiles, which are utilized to create pultruded gratings.

This process furnishes numerous advantages, including high production rates, uniform product quality, and the capability to create intricate shapes with remarkable strength-to-weight ratios

Specifications

Anchor Products’ is dedicated to offering customers the most exceptional quality FRP flooring systems available in the market. Our team of specialists employ superior materials and manufacturing techniques to ensure that our gratings comply with all quality standards and specifications.

Our gratings are robust, long-lasting, and can endure rigorous environments. We provide adept guidance with design, installation, and maintenance, ensuring that our products satisfy your precise requirements. Moreover, we furnish a comprehensive traceability system, and our skilled team is always ready to answer any queries you may have.

By selecting AnchorGrate for your FRP grating requirements, you are guaranteed top-notch quality products and professional support.

At Anchor Products, all our grating and flooring products are compliant with the relevant FRP manufacturing standards such as ASTM, ISO, EN, AS and much more.

Properties

With AnchorGrate, all our decking and grating products come with verified test reports, design certifications, and other forms of assurance that provide complete coverage for your project.

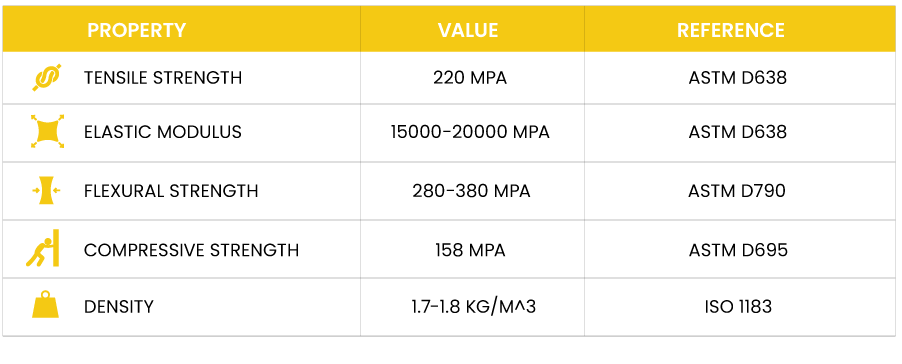

Mechanical

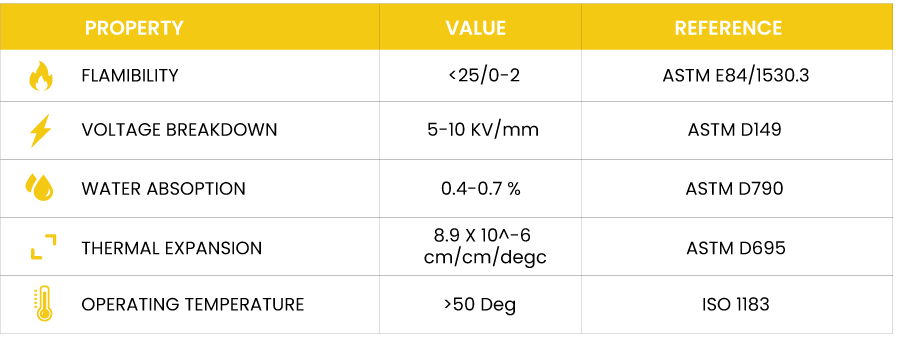

Other

Chemical Resistance

Anchor Products provides validated test report data for all our grating and flooring products, which includes information on the various types of chemicals our FRP flooring options can resist. It is important to note that the level of resistance to a chemical can be affected by the type of resin used, as well as the temperature at which the chemical and product are exposed.

If you require information on a chemical that is not provided in our resistance tables, please contact us directly. The tables provided consider standard operating temperatures.

The choice of resin used in our gratings is largely determined by the intended application. Our most commonly used resins are Ortho polyester and Iso polyester.

Ortho polyester is suitable for light industrial use and contact with salt water, providing moderate corrosion resistance without the use of fire-retardant substances.

Iso polyester, on the other hand, offers superior corrosion resistance and improved fire-retardant properties. It is ideal for use in environments with aggressive chemicals and high temperatures.

We also maintain a limited stock of gratings made from Vinyl Ester resin, which are typically produced on demand. Please contact us for recommendations on corrosion resistance for concentrations, temperatures, or chemicals not listed in this guide.

Anchor Products provides the information in this Corrosion Guide based on their extensive experience with fiberglass grating in corrosive applications. However, due to the varying use conditions and the possibility of corrosive mixtures, it is important for end-users to conduct actual tests under the specific conditions of use. SISPL’s liability for claims arising from breach of warranty or negligence is limited to the purchase price of the material sold. Test coupons can be made available upon request.

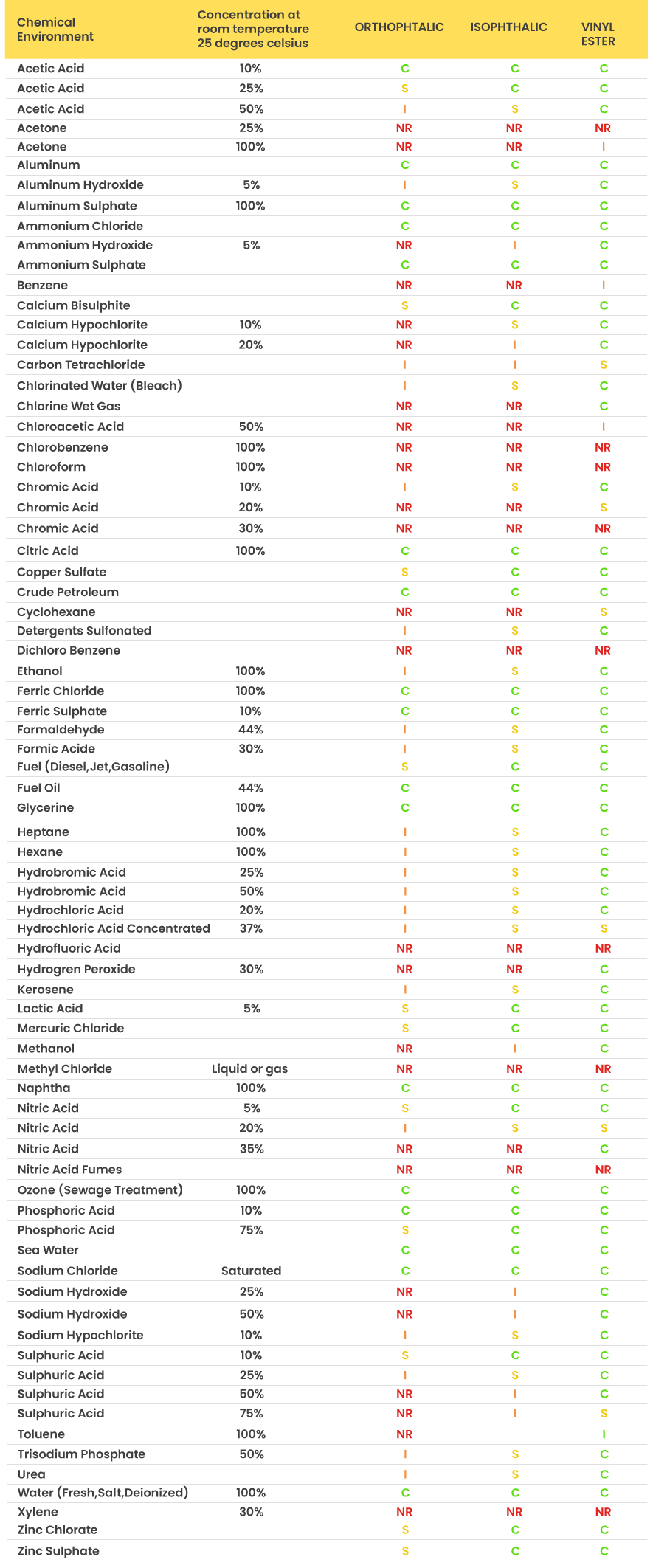

Chemical Resistance Chart

C = Continuous Exposure

S = Frequent exposure to splashes and spills

I = Infrequent exposure to splashes and spills

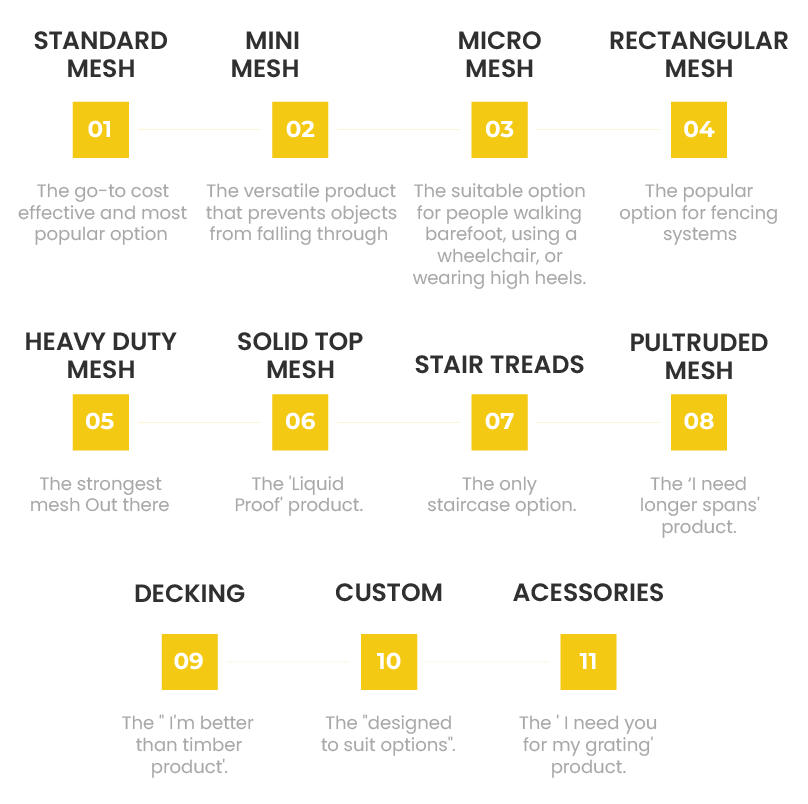

Product List

Anchor Products range of grating products is diverse, catering to various industrial and commercial applications. We prioritize factors such as strength, color, aesthetics, and environmental conditions to ensure that our products meet our clients’ needs.

How do we stand out from competitors offering similar products, you may wonder?

Our products are certified by a committee of highly experienced FRP engineers and quality officers, guaranteeing 100% compliance with both quality and design standards.

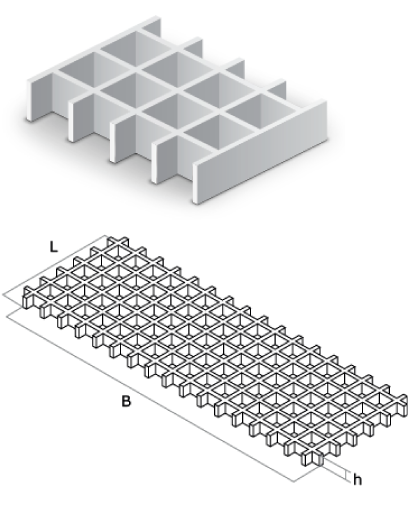

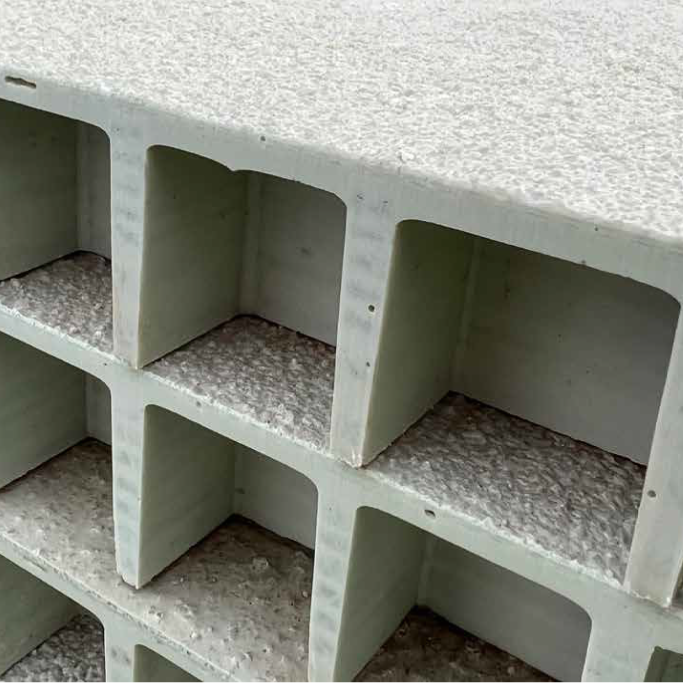

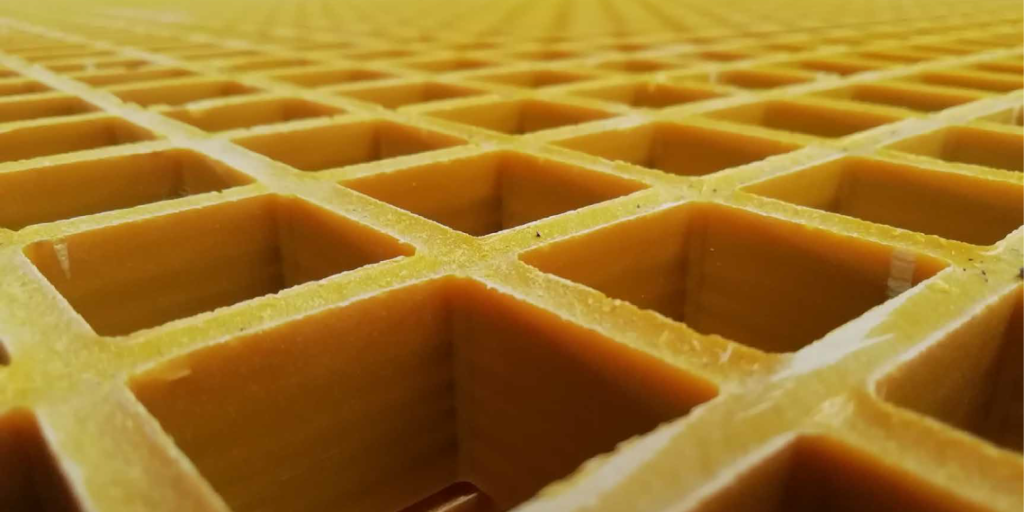

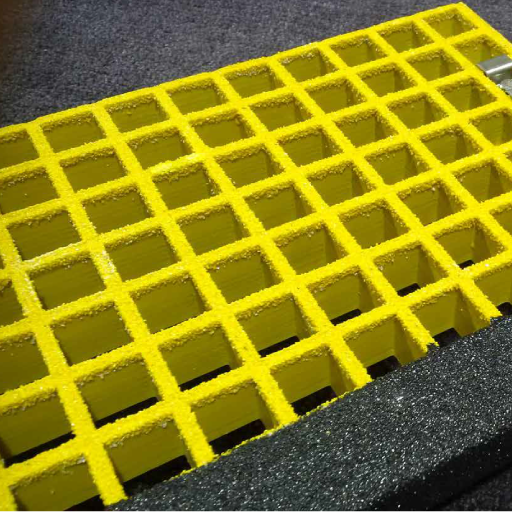

Standard Mesh Grating

Anchor Products takes pride in providing our customers with high-quality 38 x 38mm mesh FRP grating options, available in both polyester and Vinyl Ester resin. Our standard grating is a versatile and durable solution for industrial and commercial applications.

Our standard grating is not only suitable for a wide range of applications, but it is also easy to install and requires minimal maintenance, making it an efficient and cost-effective choice for any project. Therefore, it is our go-to product when it comes to meeting our clients’ needs.

Cost-Effective
The go to product •
Suitable for various applications

Grating

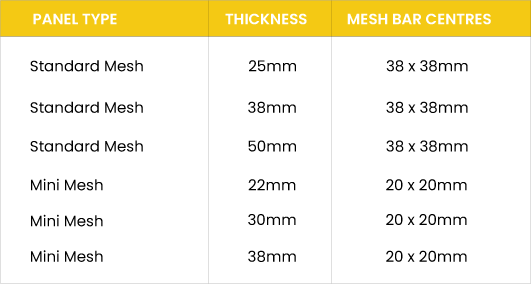

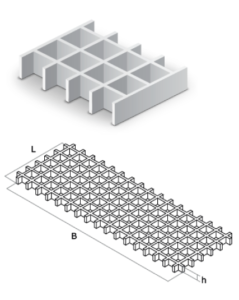

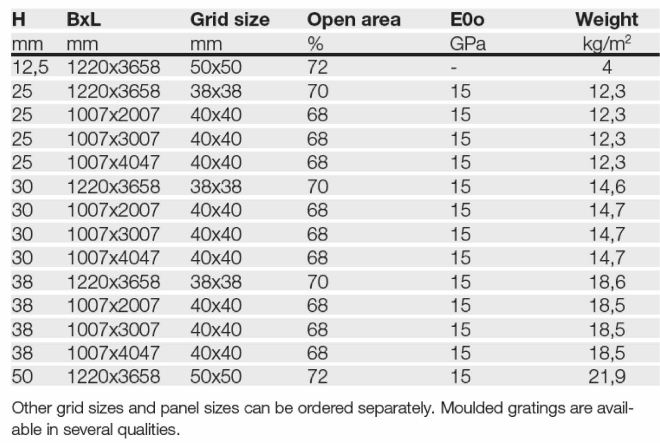

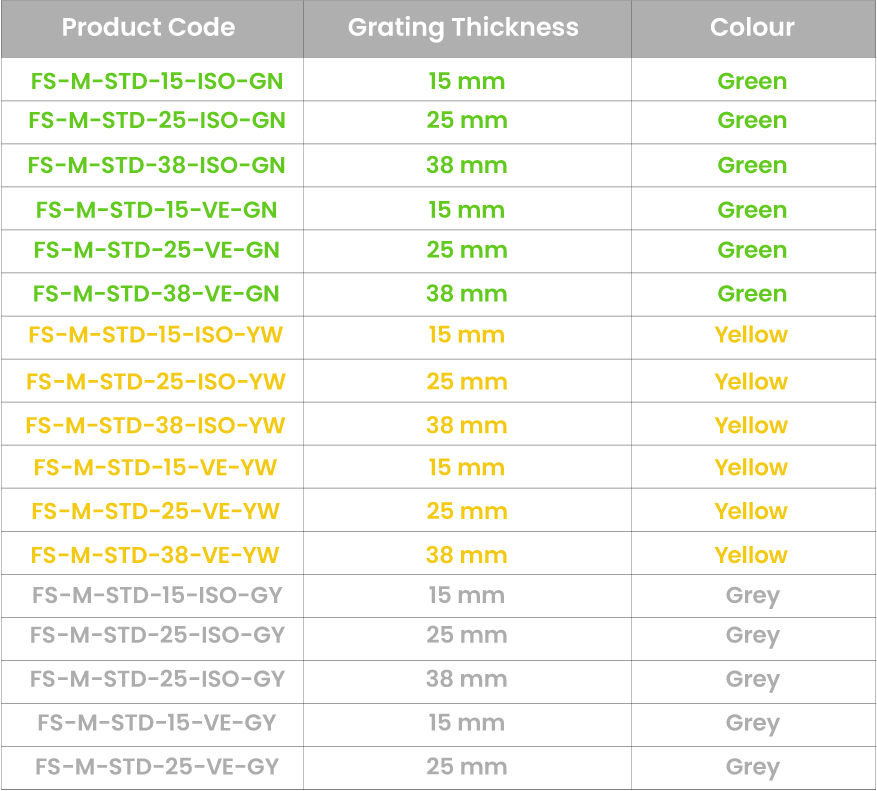

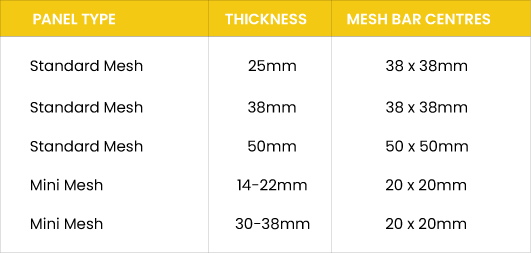

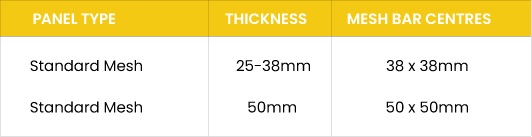

Our Standard Range

Anchor Products offers a diverse selection of standard FRP grating designed for various industries and applications.

Our product line features a range of grating options that come in different colours, thicknesses, and resins. We offer our standard mesh grating panels in various standard sizes, with the most popular size being 1220 x 3660 mm, with a mesh size of 38 x 38 mm, and a hole opening of 31 x 31 mm.

Additionally, all products listed are available in both Polyester and Vinyl Ester Resin and are readily accessible.

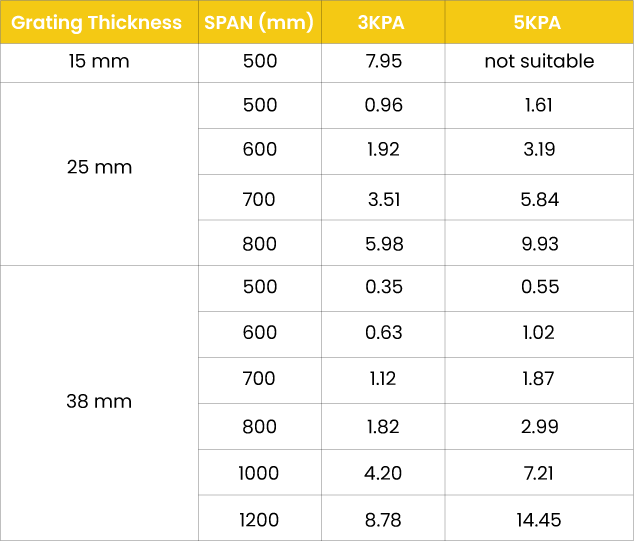

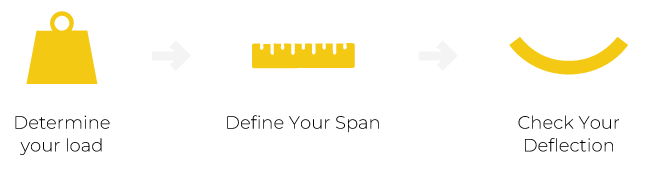

Our Standard Load Capacities

Anchor Products has an extensive range of standard FRP gratings designed to withstand various loading requirements. Our team of FRP experts is dedicated to providing information on load capacity and span for any given application.

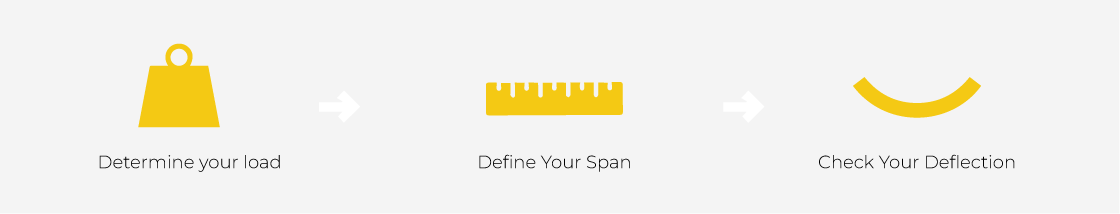

We have provided general distribution and point load information suitable for most FRP grating applications. It is important to follow our recommended steps when using our span table.

_{Please note all values provided in table are in mm for deflection. These are indicative only.}

Our grating span tables are based on a combination of live test data and engineering computations from our highly experienced FRP engineers. However, it is important to note that our span tables are provided for informative or educational purposes only and should not replace the application of engineering principles when deducing values.

Anchor Products is not liable for any interpretation of the table by our clients that differs from our recommendation.

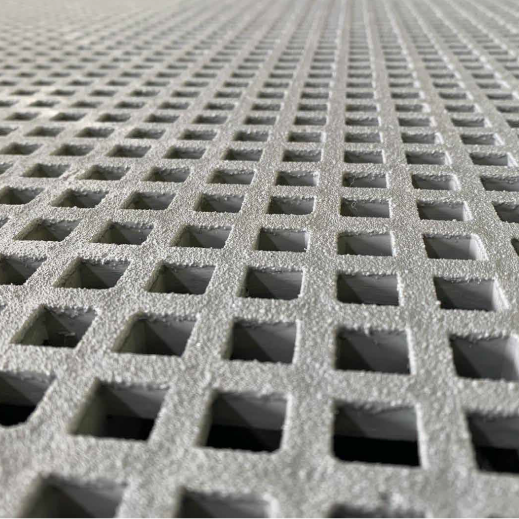

Mini Mesh Grating

Anchor Products takes pride in providing our customers with top-quality FRP mini mesh grating, available in both Polyester and Vinyl Ester resin with a 19 x 19 mm hole size. Our mini mesh grating is specifically designed for commercial or industrial applications that require a smaller hole size, making it ideal for barefoot requirements such as beach accesses. The smaller hole size also provides additional strength compared to standard grating, allowing for larger spans to be achieved for the same loading.

Bare-Foot Approved
Ideal for commercial applications
Aesthetically Pleasing
Prevents objects from falling through (20-mm-diameter ball requirements)

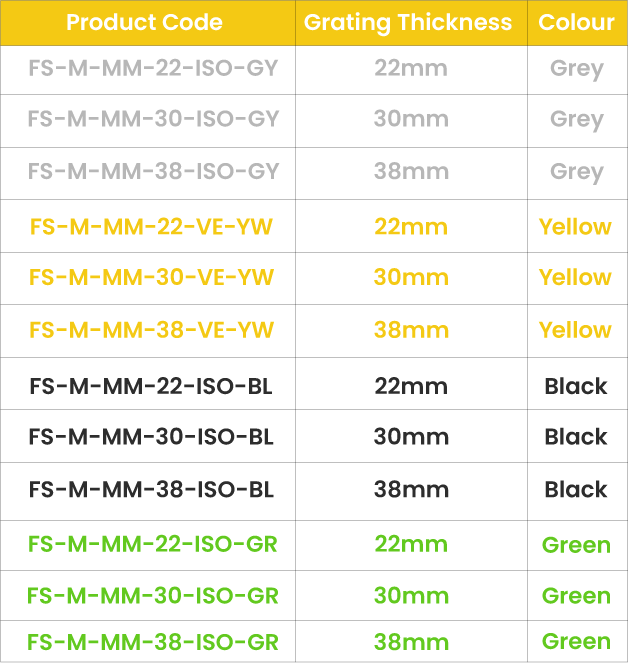

Our Mini Mesh Range

Anchor Products provide a diverse selection of Mini Mesh FRP grating in varying colours, thicknesses, and resin types. We offer our mini mesh grating panels in various standard sizes, with the most popular size being 1247 x 3687mm, which is specifically chosen for the most optimal panel layout. Additionally, all of our listed products are available in both Isophthalic and Vinyl Ester Resin options. Our mini mesh gratings come with a mesh size of 19 x 19 mm, and a hole opening of 12 x 12 mm.

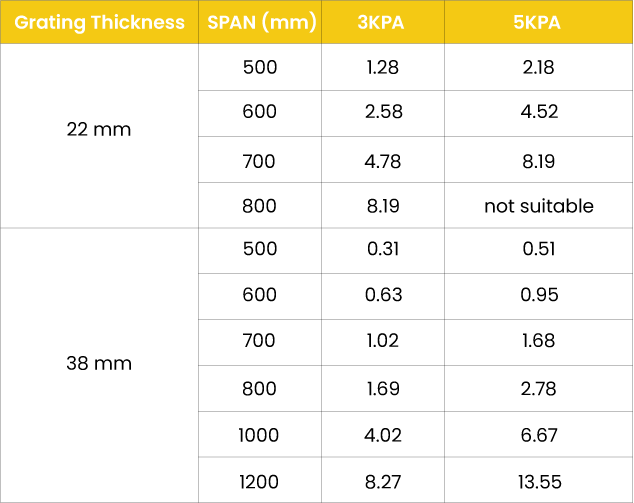

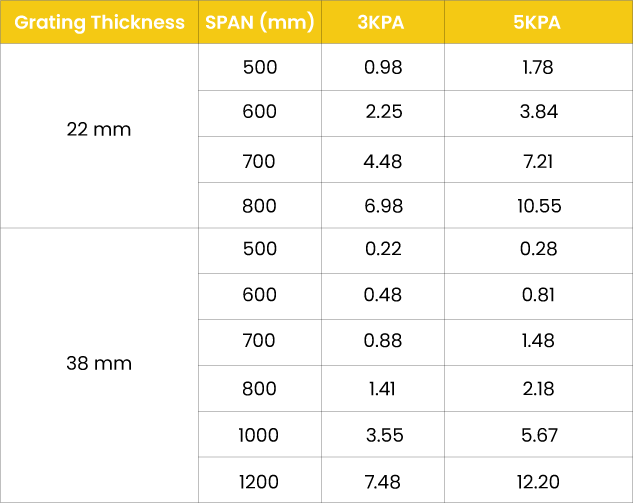

Our Mini Mesh Load Capacities

We offer a wide range of mini mesh FRP grating that are designed to withstand various types of loading requirements. Our team of FRP experts are dedicated to providing any information for a certain load or span.

Anchor Products is not liable for any interpretation of the table by our clients that differs from our recommendations.

_{Please keep in mind that all values in the table are in mm for deflection and are indicative only. For 30mm mini mesh, interpolation methods may be used. Both Mini Mesh and Micro Mesh grating panels might experience warping due to their manufacturing process.}

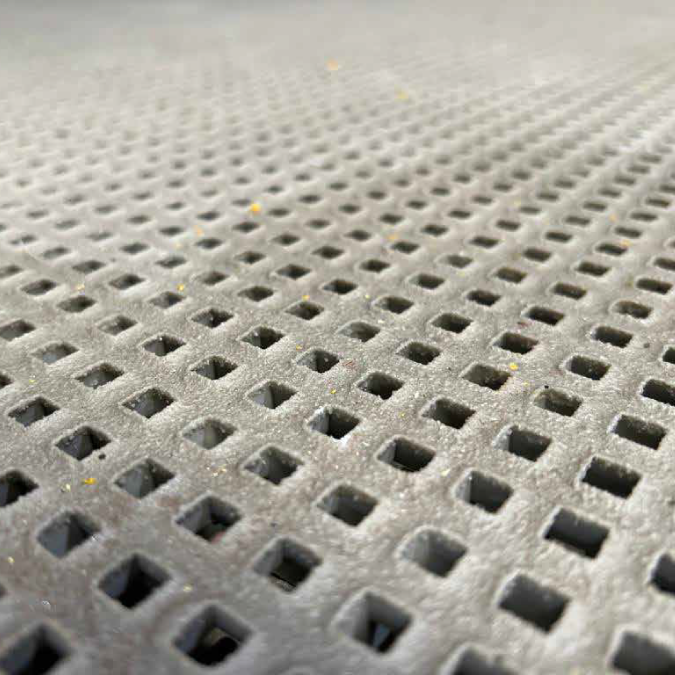

Micro Mesh Grating

Anchor Products take pride in providing our customers with the highest quality 13 x 13 mm FRP micro mesh grating with a 7×7 mm mesh opening, available in both Polyester and Vinyl Ester resin.

The tightly knit mesh design of our micro mesh grating makes it incredibly strong and durable, while its small hole size creates a smooth and comfortable surface, making it an ideal choice for residential applications. In addition, the micro mesh grating’s opaque nature is perfect for blocking out sunlight. The micromesh gratings are the perfect choice for wheelchairs and high heels.

Bare-Foot Approved
Blocks Sunlight
Strong
Suitable for wheelchairs and high heels

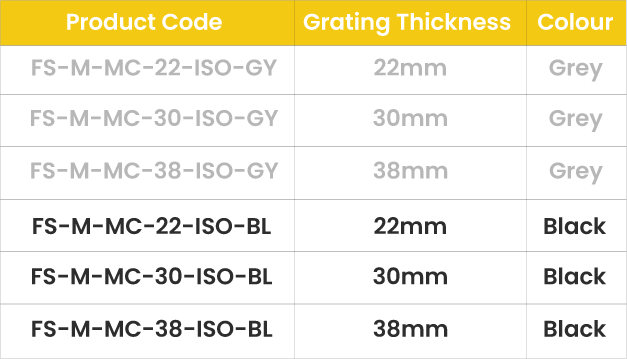

Our Micro Mesh Range

We provide a diverse selection of Mini Mesh FRP grating in varying colours, thicknesses, and resin types. We offer our mini mesh grating panels in various standard sizes, with the most popular size being 1247 x 3687mm, which is specifically chosen for the most optimal panel layout. Additionally, all of our listed products are available in both isophthalic and Vinyl Ester Resin options. Our mini mesh gratings come with a mesh size of 19 x 19 mm, and a hole opening of 12 x 12 mm.

Our Micro Mesh Load Capacities

Our Micro Mesh FRP Grating is engineered to withstand various types of loading requirements, and our team of FRP experts is dedicated to providing information regarding specific load or span needs.

The recommended general distribution and point load suitable for most FRP grating applications have been provided, and it’s important to follow our recommended steps when using our span table.

Anchor Products grating span tables are created using a combination of live test data and engineering computations by our experienced FRP engineers. It’s important to note that our span tables are intended for educational or informative purposes only and should not replace the application of engineering principles in determining values

Anchor Products can not be held responsible for any interpretation of the table by clients that differs from our guidance.

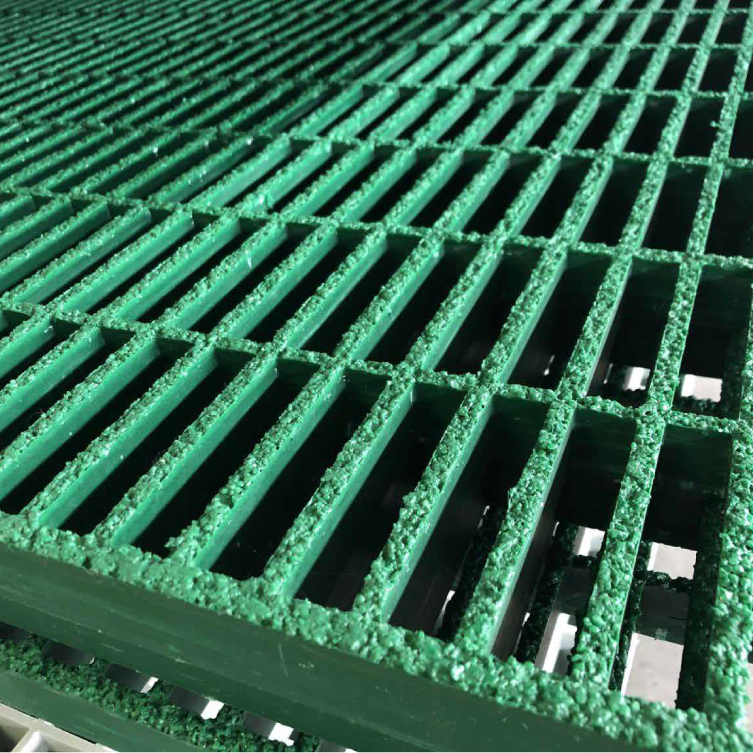

Rectangular Mesh Grating

Anchor Products take pride in providing our customers with the best quality FRP rectangular mesh grating, available in both Polyester and Vinyl Ester resin. Our rectangular mesh grating is designed to be strong and durable, thanks to its tightly-knitted mesh structure. With its rectangular hole size 100 x 25 mm, this grating is ideal for use in safety applications such as fences. Additionally, the grating’s opaque nature makes it perfect for blocking sunlight.

Bare-Foot Approved
Strong
Blocks Sunlight

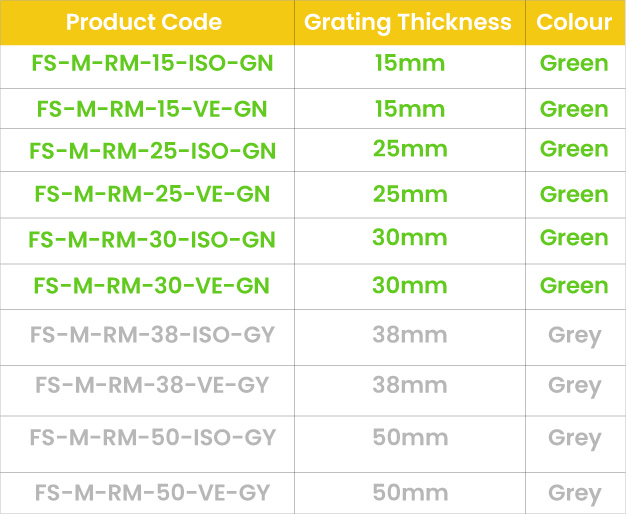

Our Rectangular Mesh Range

We offer a diverse selection of Rectangular Mesh FRP grating, featuring various colours, thicknesses, and resin options. Our standard panel size measures 1.22M X 3.66M, and all of our products, including the Isophthalic and Vinyl Ester Resin options, are readily available.

Our Rectangular Mesh Load Capacities

We provide a comprehensive collection of rectangular mesh FRP grating that are engineered to endure different types of loading demands. Our team of FRP specialists is committed to offering information on any load or span requirements.

We have furnished the typical distribution and point load that are appropriate for most FRP grating uses. It is crucial to adhere to the recommended procedures while utilizing our span table

Anchor Products grating span tables are a product of a fusion of live test data and engineering calculations from our proficient FRP engineers.

It is important to acknowledge that all of our span tables serve an informative or educational purpose and should not substitute the application of engineering principles when determining the values. Any misinterpretation of the table by our clients that deviates from our guidelines is not the responsibility of Anchor Products.

_{Please keep in mind that all values in the table are in mm for deflection and are indicative only.}

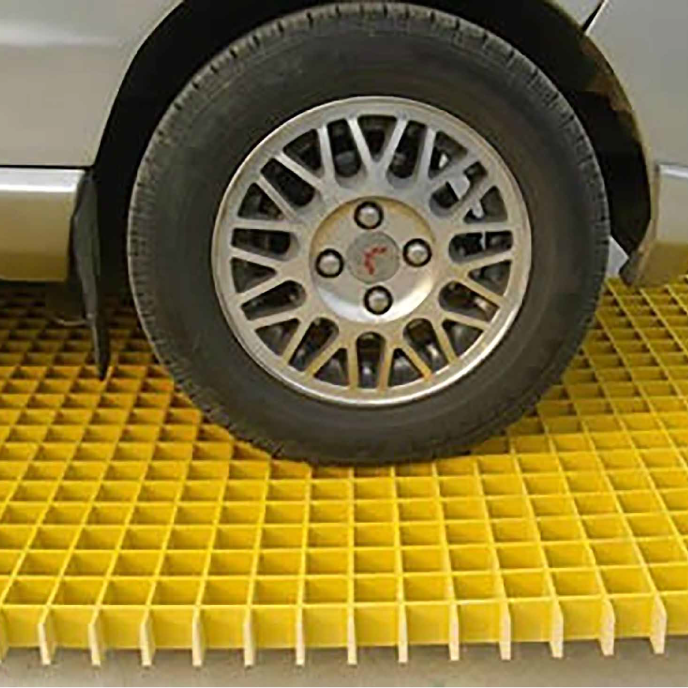

Heavy Duty Grating

Anchor Products take pride in providing our customers with a premium heavy-duty mesh FRP grating, available in both Polyester and Vinyl Ester resin options. Our heavy-duty grating is an ideal solution for high-load applications, offering a sturdy and resilient choice for any task. Despite its strength, our heavy-duty grating is lightweight, ensuring effortless transport and installation.

Strong
Thicker load bars
The best options for trafficable areas (vehicles, forklifts)

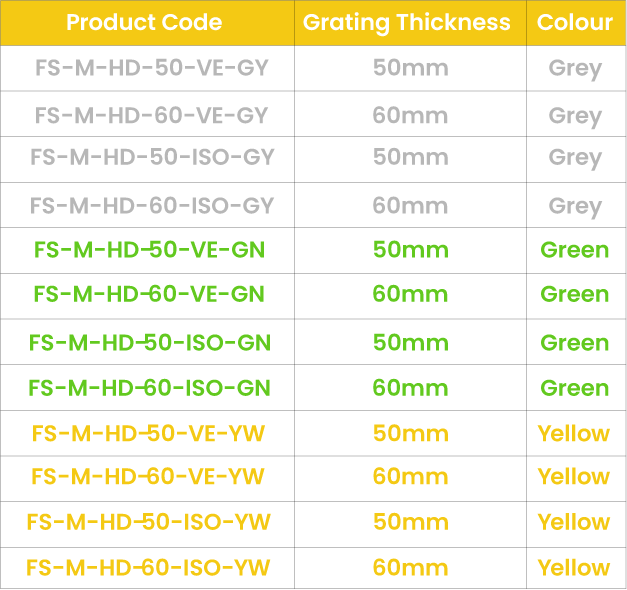

Our Heavy Duty Range

We specialize in providing a robust and durable version of standard FRP grating, which is suitable for high loading applications. Our heavy duty (HD) grating panels are available in a standard size of 1220 x 3660 mm and have a mesh size of 38 x 38 mm with a hole opening of 31 x 31 mm or 27 x 27 mm.

We offer our products in both Isophthalic and Vinyl Ester Resin to meet varying requirements.

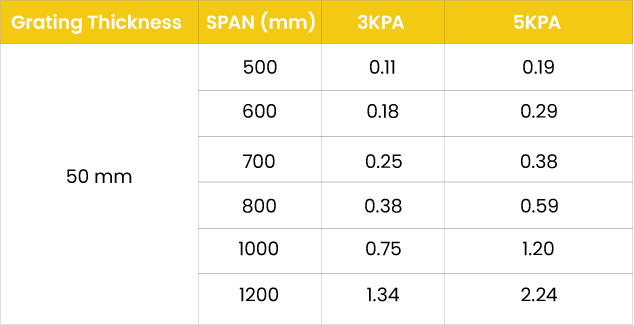

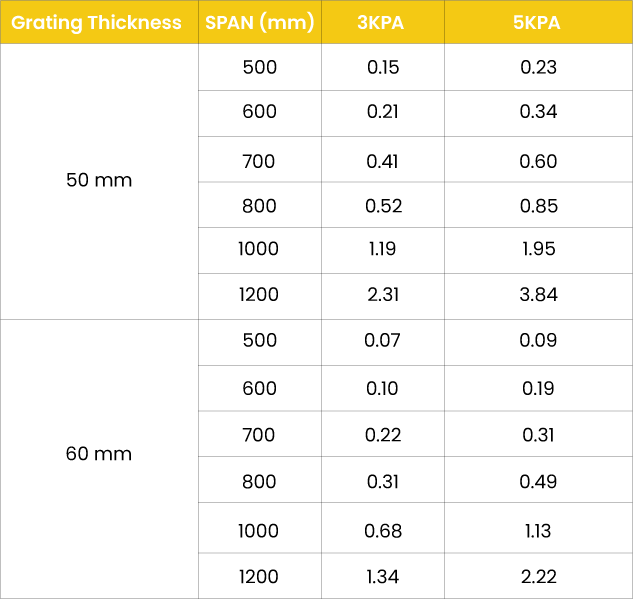

Our Heavy Duty Mesh Load Capacities

Our range of heavy-duty (HD) mesh FRP grating is designed to withstand different types of loading requirements. Our team of FRP experts is dedicated to providing any necessary information on load or span for each application.

We have provided a table of general distribution and point load suitable for most FRP grating applications, and it’s important to follow the recommended steps when using our span table.

Our grating span tables are based on a combination of live test data and engineering computations from our highly experienced FRP engineers.

However, it’s important to note that all our span tables are provided for informative or educational purposes only and should not replace the application of engineering principles when deducing values. It is the responsibility of our clients to interpret the table according to our guidance, and the FRP World cannot be held liable for any misinterpretation.

_{Please keep in mind that all values in the table are in mm for deflection and are indicative only.}

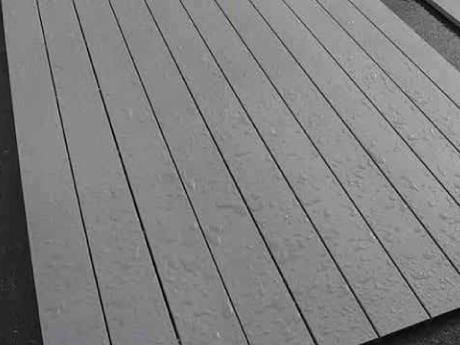

Solid Top Grating

Anchor Products take pride in providing its customers with Solid top mesh FRP grating available in both Polyester and Vinyl Ester resin. Our Solid top is made by laminating a standard FRP mesh grating with an FRP gritted plate on the top surface, effectively blocking out the mesh openings and creating an opaque surface. This makes it an ideal solution for applications that require an impermeable floor.

Strong
Impermeable
Light-Weight

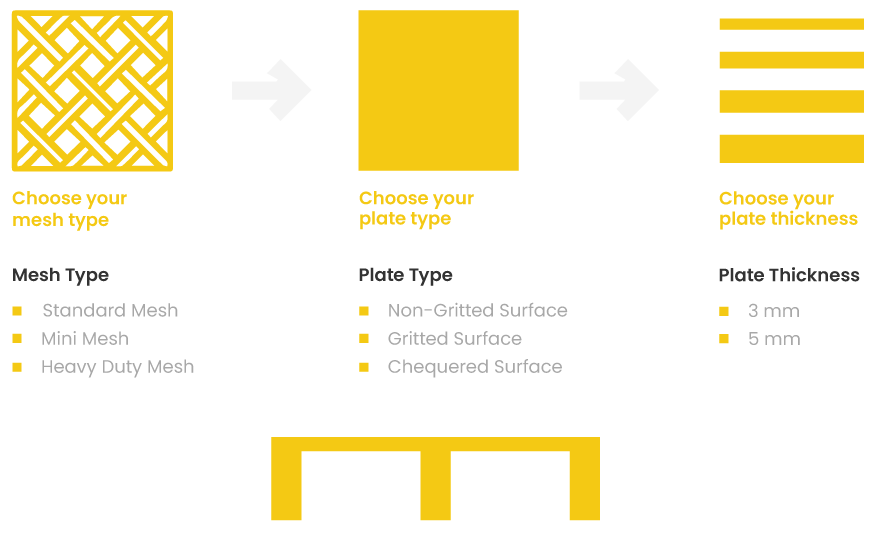

Our Solid Top Range

We provides a standard FRP grating that comes with an impermeable top surface, designed to prevent any items from passing through it. Our solid top grating panels are available in a standard panel size of 1220mm x 3660mm and feature a solid FRP plate.

We provide a standard FRP grating that comes with an impermeable top surface, designed to prevent any items from passing through it. Our solid top grating panels are available in a standard panel size of 1220mm x 3660mm and feature a solid FRP plate.

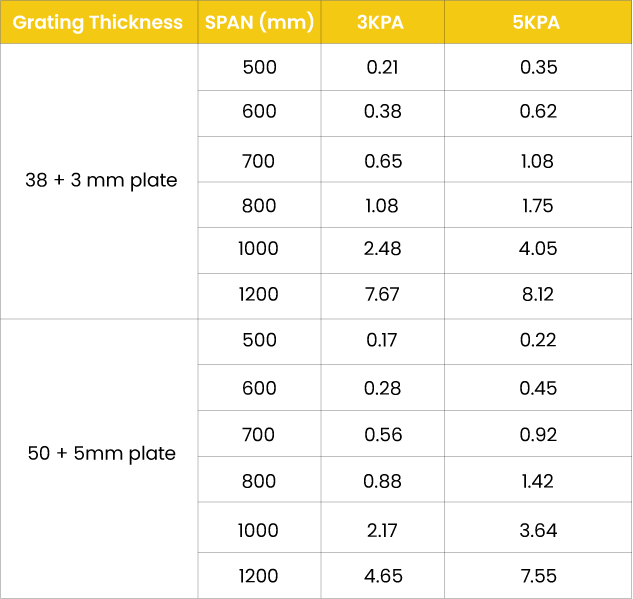

Our Solid Top Load Capacities

Anchor Products offers a wide range of solid top FRP grating that are specifically designed to withstand various types of loading requirements. Our team of FRP experts is dedicated to providing information on load or span for a given application.

We have provided a table of general distribution and point load suitable for most FRP grating applications, and it’s important to follow the recommended steps when using our span table

All our grating span tables are based on a combination of live test data and engineering computations from our highly experienced FRP engineers. However, it’s important to note that our span tables are for informative or educational purposes only and should not replace the application of engineering principles when deducing values.

AnchorProducts cannot be held liable for any misinterpretation of the table by our clients that differs from our guidance.

_{Please keep in mind that all values in the table are in mm for deflection and are indicative only. This table provides loads for top solid gratings with standard mesh type.}

Heavy Duty Grating

Anchor Products take pride in providing its customers with FRP stair treads available in both Polyester and Vinyl Ester resin. Our treads are constructed using standard FRP mesh grating, with an FRP gritted stair nosing resin bonded on the top edge surface of the tread. This design makes them an ideal solution for both commercial and industrial staircase applications.

Non-Corrosive
Slip Resistant
Light-Weight
Safety Nosing

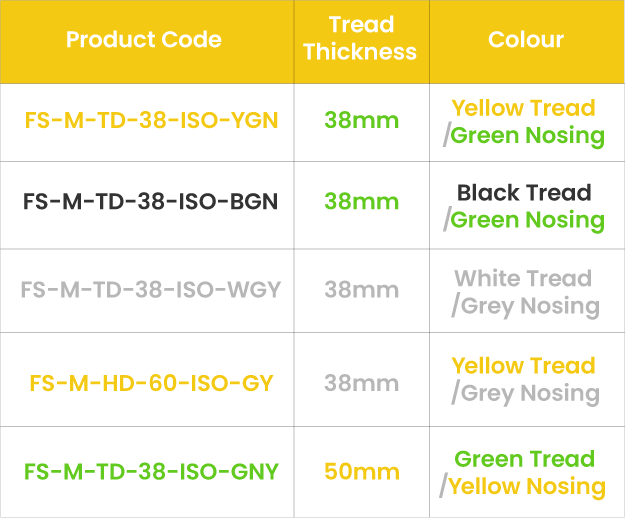

Our Stair Tread Range

We provide easily installable, anti-slip stair treads that are resistant to corrosion and can be used with staircases made of any other material.

We have provided general distribution and point load suitable for most FRP tread applications, but it is crucial to follow the recommended steps when using our span table.

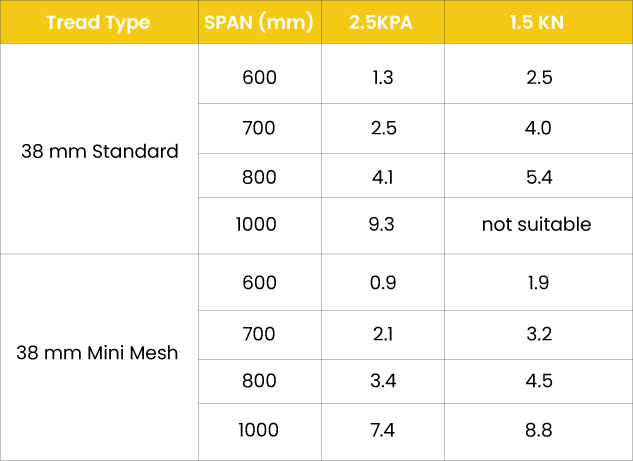

Our Stair Tread Load Capacities

Anchor Products offers a diverse range of FRP Stair Treads designed to withstand various loading requirements. Our team of FRP experts is committed to providing information for a specific load or span.

We have provided a table of general distribution and point load suitable for most FRP grating applications, and it’s important to follow the recommended steps when using our span table.

Anchor Products grating span tables are a result of a combination of live test data and engineering computations carried out by our highly experienced FRP engineers. However, it is important to note that these tables are provided for informative or educational purposes only and should not be used as a replacement for the application of engineering principles when determining the values.

Anchor Products cannot be held liable for any interpretation of the table by our clients that differs from what is guided by us.

_{Please be aware that all values provided in the table are in mm for deflection, and they are indicative only. The tread span tables are based on a maximum tread depth of 300 mm, and they adhere to AS 1657 design considerations.}

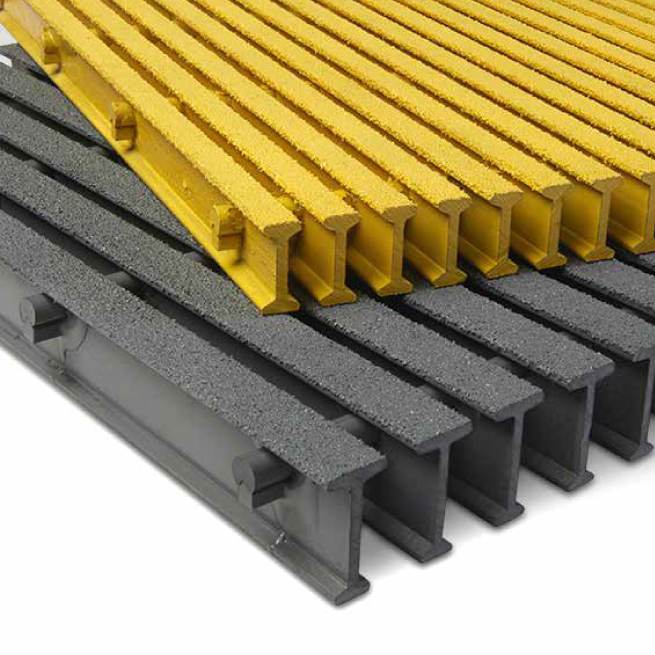

Pultruded Grating

Anchor Products takes pride in providing our customers with a premium heavy-duty mesh FRP grating, available in both Polyester and Vinyl Ester resin options. Our heavy-duty grating is an ideal solution for high-load applications, offering a sturdy and resilient choice for any task. Despite its strength, our heavy-duty grating is lightweight, ensuring effortless transport and installation.

Suitable for high Uniformly Distributed Loads
Offers Design Flexibility
Longer Span Capabilities

Our Heavy Duty Range

Anchor Products provides a highly durable pultruded gratings that can withstand heavy load requirements. Our pultruded grating panels come in a standard size of 1200 x 5800 mm with a standard rod spacing of 152 mm.

We offer these products in both Polyester and Vinyl Ester Resin. The design flexibility of pultruded grating allows us to customize it based on specific requirements by following the recommended steps below.

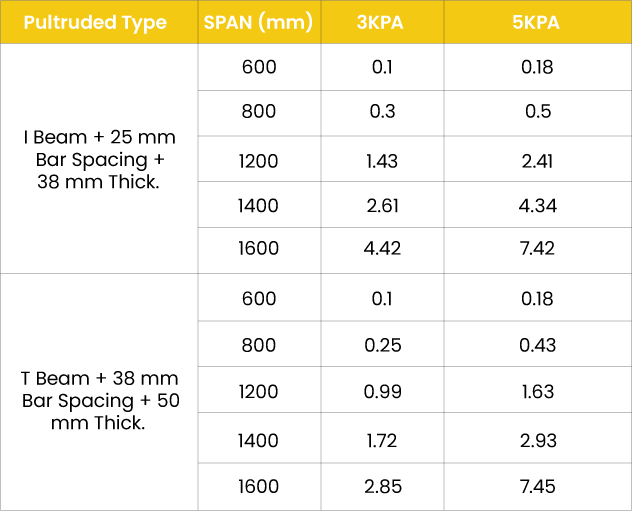

Our Heavy Duty Mesh Load Capacities

We offer a wide range of FRP pultruded grating that are designed to withstand various types of loading requirements. Our team of FRP experts are dedicated to providing any information for a certain load or span.

The general distribution and point load suitable for most FRP flooring applications have been provided. It is important to follow the recommended steps when using our span table.

Anchor Products grating span tables are based on a combination of live test data and engineering computations from our highly experienced FRP engineers. It is however to note that tall our span tables are providing for informative or educational purposes. It is not to be replaced with application of engineering principles when deducing the values.

Anchor Products is not liable for interpretation of the table by our clients, different to what is guided by us.

_{Please note all values provided in table are in mm for deflection. These are indicative only. All information provided in this table is based on a standard 152 mm maximum rod spacing between pultruded bars. Deflection for intermediate spans may be determined by interpolation methods.}

FRP Decking

Anchor Products takes pride in offering its customers FRP decking panels that are available in both Polyester and Vinyl Ester resin options. Our FRP decking is a great option to cover any type of surface that needs to be sealed against liquids. Our decking panels come in two types – Cover Decking and Plank Decking.

Strong
Sealing Cover Option
Aesthetically Pleasing Great

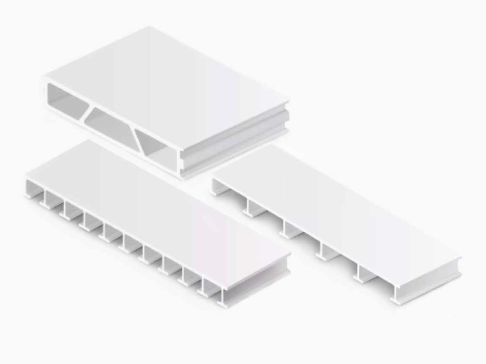

Our FRP Decking Range

We offer two incredibly strong and durable FRP pultruded decking options: Cover Decking and Plank Decking.

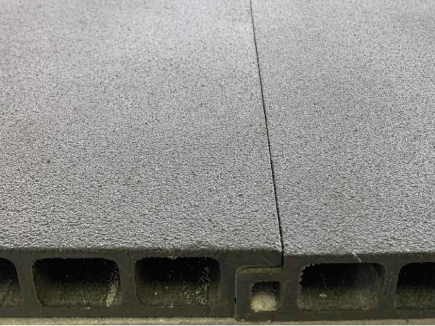

Cover Decking

Cover Decking features a custom panel profile with a unique interlocking system that uses butt-join technology to limit the passage of liquids or gases. This makes it an excellent cover and sealing option, which is available in any color. Custom panel sizes are also available to suit your project’s needs. This product is ideal for industrial applications but can also be used for public infrastructures as well.

Plank Decking

Plank Decking is similar to Cover grating in that it uses a unique profile such as a C-channel or square hollow box as a deck panel with FRP rods spaced equally resin bonded to join the panels together. Its aesthetic appeal and design flexibility make it an excellent choice for public infrastructures and residential applications.

Custom panel sizes are available to suit your project, and load and spanning capabilities can be provided upon request.

Please note that these products are design-specific

Installation

You have the option to choose Anchor Products for material supply and manufacture only or for installation services as well.

Regardless of your choice, we guarantee excellent customer service and on-site support throughout your project

Our Design team has an impressive track record of designing and constructing the first wholly composite boardwalk and bridge in Australia. We have the expertise to build pedestrian structures from the ground up or retrofit existing sub-structures.

Our installation team is highly reputable and has won awards for their work. They have extensive experience in a variety of design and construction projects, including those in rural and remote areas.

We are committed to providing professional, high-quality services in commercial construction. Our work is completed with integrity and professionalism, and we are trusted nationally for our strong work ethic, quality, innovation, and sustainable approach.

Basic Tips

SAFETY PRECAUTIONS

For your safety when cutting FRP products, it is important to wear protective gear such as safety glasses, a dust mask, gloves, and a shop coat with sleeves to avoid skin irritation. It is also important to work in a well-ventilated area to prevent inhalation of dust particles.

CUTTING

To achieve the best results, use a heavy-duty rotary saw with a masonry, carbide or diamond coated blade to cut the FRP grating. Firm support of the panel will prevent shifting, and turning the panel bottom-side-up will provide a smooth surface for the saw to ride on and reduce chipping. It is important to allow for the blade width when measuring.

GRINDING

All cut edges should be ground smooth.

FINISHING

After cutting, it is recommended to coat all cut surfaces with resin to prevent corrosion of glass fibers. A two-part resin system or a comparable resin to the one used in the manufacture of the fiberglass grating should be used to maintain corrosion resistance.

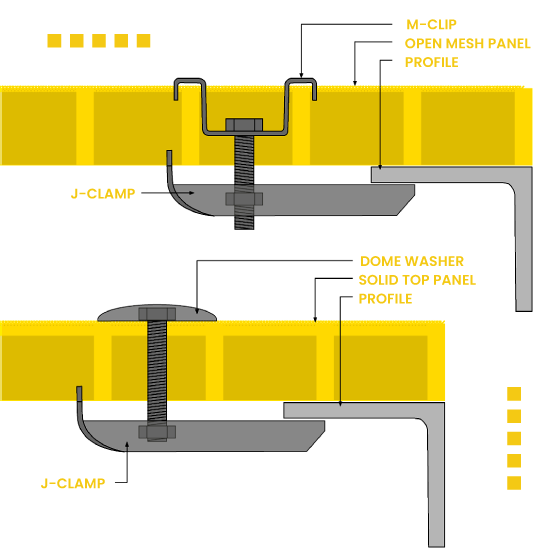

CLIP INSTALLATION

For installation, it is recommended to provide a minimum of 40mm bearing support at all grating support points, and to use hold down clips at a rate of 4 per m2.

CLIP INSTALLATION

Clips should be used to join grating panels together and fasten the grating to the support system. SIS supplies various types of clips for its grating.

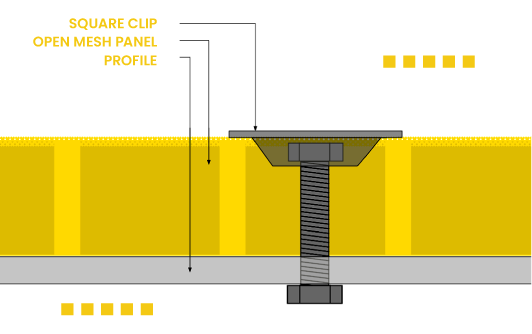

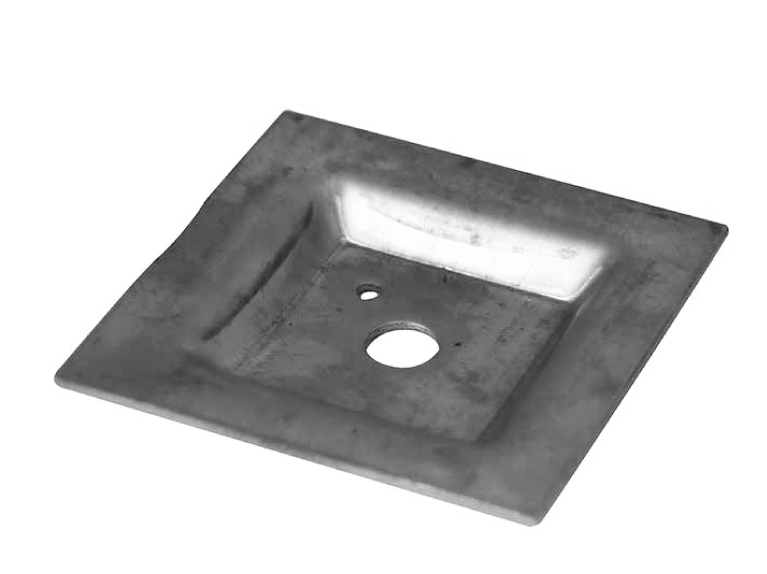

SQUARE CLIPS

Panel Holding Down Clip
Grade 316/A4
Secure Standard Mesh Panels to solid surfaces Can also be used on Solid Top Panels
Direct fix to substrates
Compatible with various fixing methods
Recessed design only 1.5mm proud for minimum trip hazard

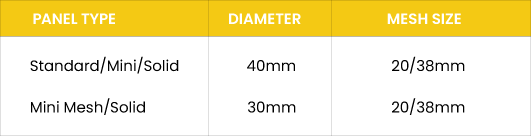

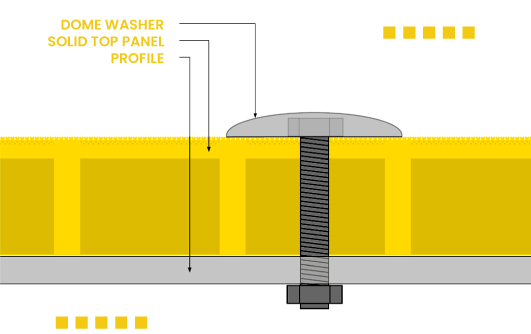

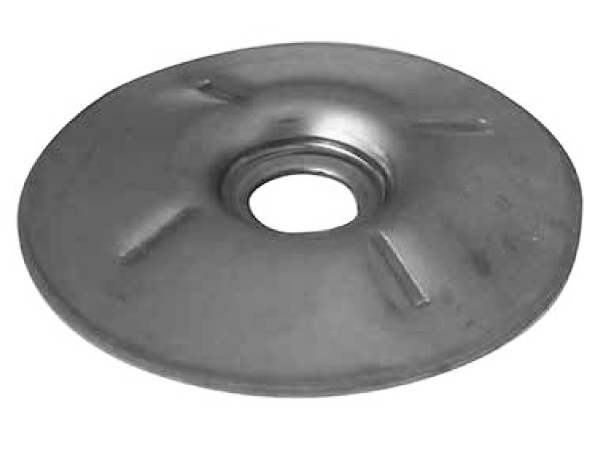

DOME WASHERS

Panel Holding Down Clip
Grade 316/A4
For use with Open Mesh, Solid Top Panels, Flat Plate and for snag-free GRP structures
Direct fix to substrate
Heavy Duty fixing clip
Compatible with various fixing methods

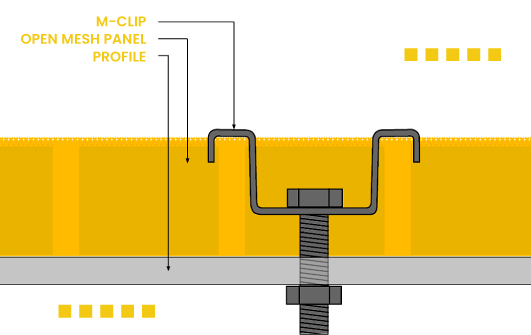

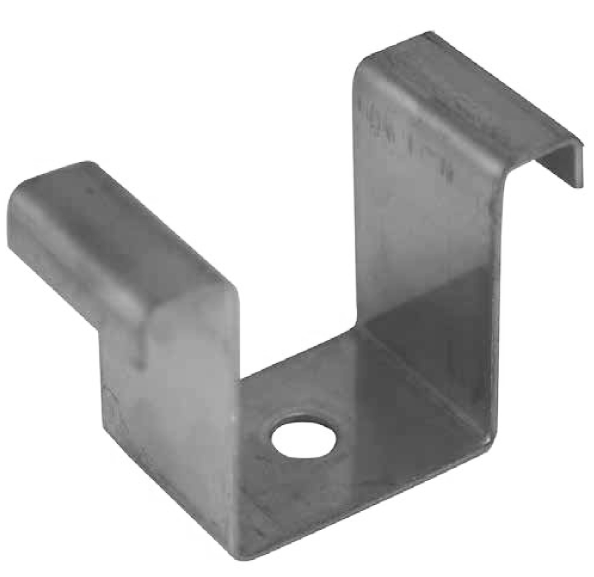

M-CLIPS

Panel Holding Down Clip
Grade 316/A4
Designed to secure open mesh grating to GRP Profile or directly to substrate
Heavy duty fixing clip
Recessed design 1.5mm proud for trip-free finish

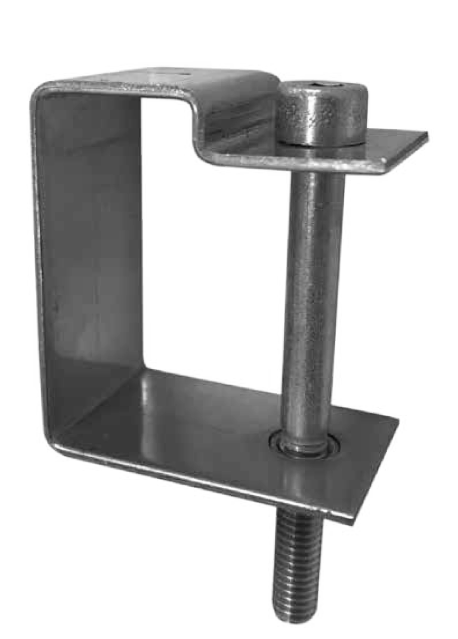

J-CLAMPS

Panel Holding Down Clip
Grade 316/A4
Friction fixing clamp
Used where direct substrate fitting with bolt/screws is not permitted to clamp onto flange/web
Does not require tightening from underneath
Use M8 bolt thread with M8 Nyloc or square nut

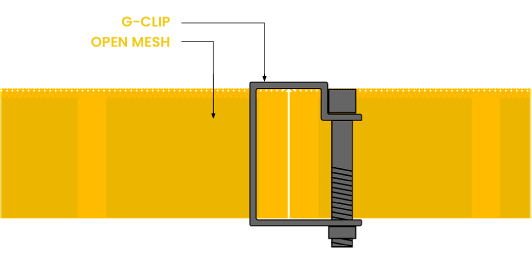

G-CLAMPS

Panel-to-panel clamp
Grade 316/A4
Secure two open mesh panels side-by-side
Supplied with hex bolt
Non-structural joining system Suitable for temporary floor systems
Recessed design 1.5mm proud for trip-free finish
Soc cap head included

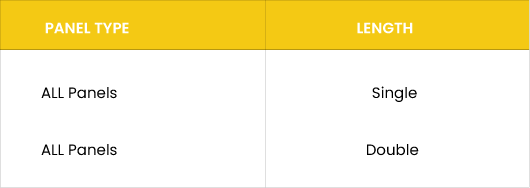

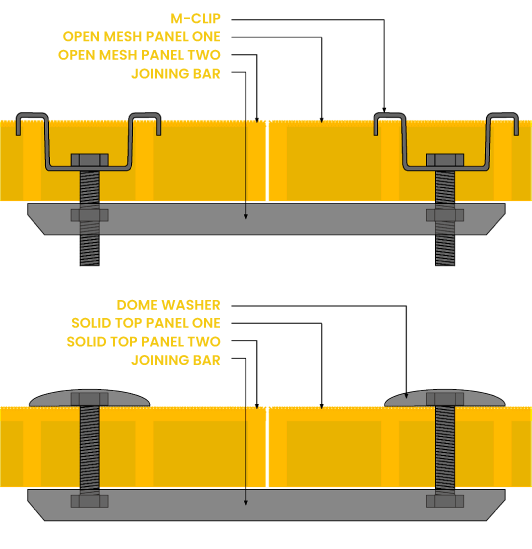

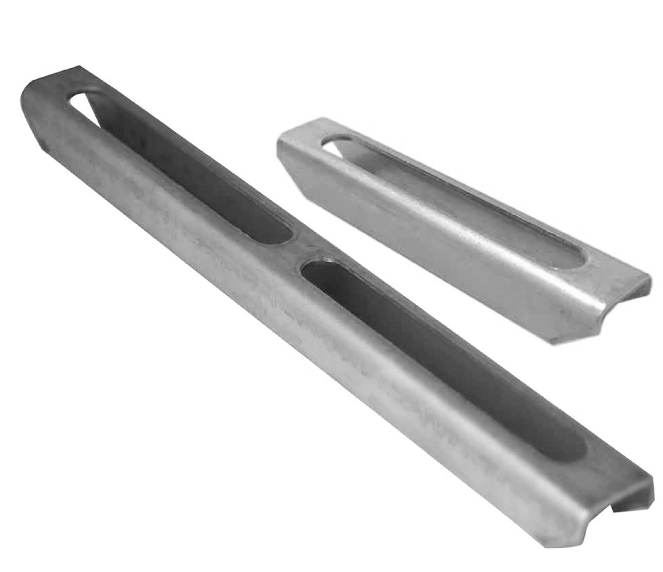

JOINING BARS

Panel-to-panel clamp
Grade 316/A4
Secure two open mesh or solid top/bottom panels side-by-side
Structural joining system
Use M8 bolt with M8 square nut
